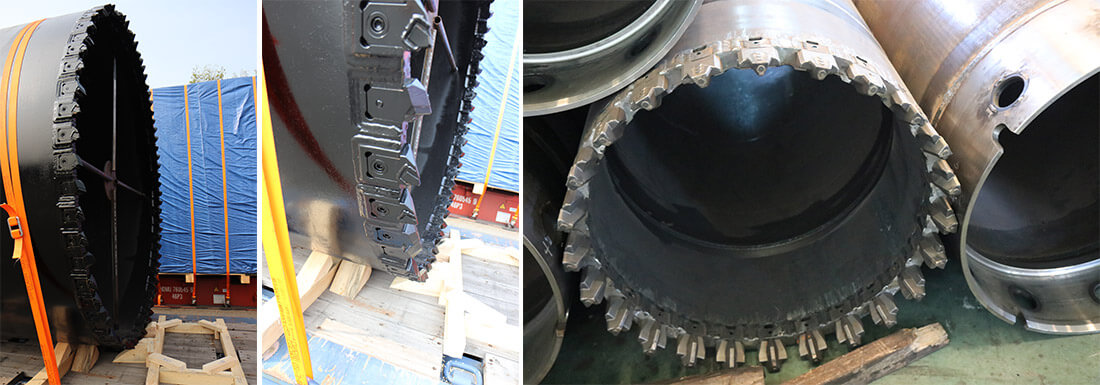

Casing Shoe

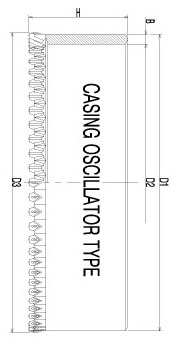

Casing Oscillator Type(Horizontal scroll)

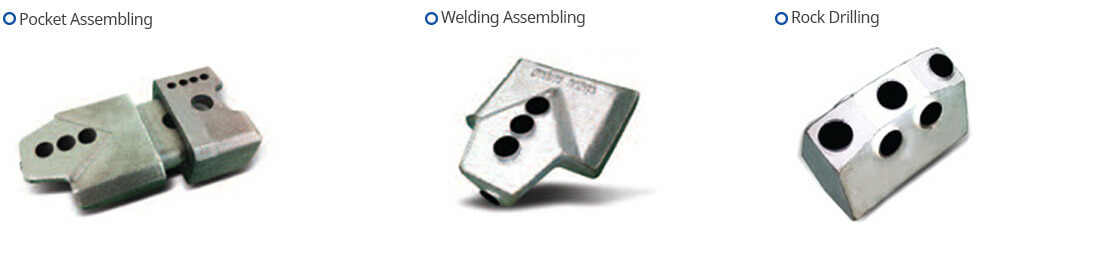

osc23

Specification
osc D1/D2 D3 B H Weight Weld-on T.C. Tip
[mm] [mm] [kg] [mm] Q'ty
600 / 520 610 40 510 270 110 x 100 x 60 / 15 18
700 / 620 710 40 510 310 110 x 100 x 60 / 15 21
800 / 720 810 40 510 360 110 x 100 x 60 / 15 24
900 / 820 910 40 510 410 110 x 100 x 60 / 15 27
1,000 / 920 1,010 40 510 450 110 x 100 x 60 / 15 30
1,080 / 1,000 1,090 40 510 470 110 x 100 x 60 / 15 32
1,200 / 1,120 1,210 40 510 550 110 x 100 x 60 / 15 37
1,500 / 1,400 1,516 50 510 840 110 x 100 x 60 / 15 47
1,800 / 1,700 1,816 50 510 1,010 110 x 100 x 60 / 15 56
1,800 / 1,680 1,816 60 510 1,180 110 x 100 x 60 / 15 56
2,000 / 1,880 2,016 60 510 1,315 110 x 100 x 60 / 15 62
2,200 / 2,080 2,216 60 510 1,450 110 x 100 x 60 / 15 69
2,500 / 2,380 2,516 60 510 1,650 110 x 100 x 60 / 15 78
2,800 / 2,640 2,816 80 510 2,460 110 x 100 x 60 / 15 87
3,000 / 2,840 3,016 80 510 2,650 110 x 100 x 60 / 15 94

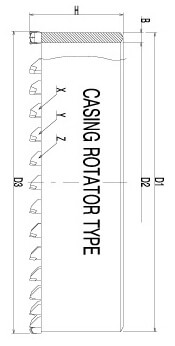

Casing Rotator Type(Horizontal scroll)

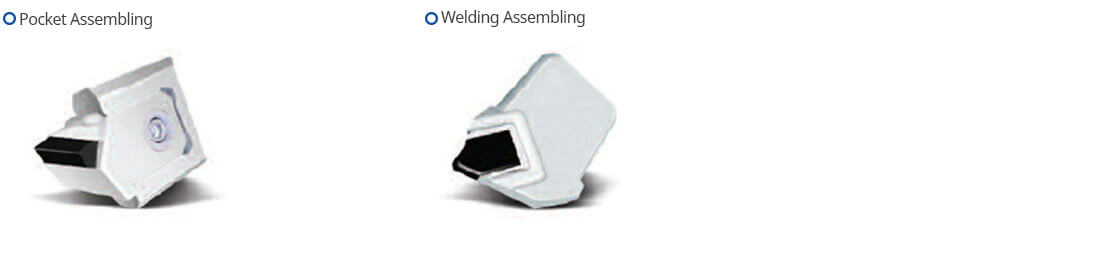

osc

Casing Rotator Typ
osc D1/D2 D3 B H Weight Weld-on T.C. Tip [Q'ty]
[mm] [mm] [kg] x(in) y(center) x(out)
600 / 520 610 40 450 240 6 6 6
700 / 620 710 40 450 280 7 7 7
800 / 720 810 40 450 325 8 8 8
900 / 820 910 40 450 365 9 9 9
1,000 / 920 1,010 40 450 410 10 10 10
1,080 / 1,000 1,090 40 450 460 11 11 11
1,200 / 1,120 1,210 40 450 490 12 12 12
1,500 / 1,400 1,516 50 450 760 15 15 15
1,800 / 1,700 1,816 50 450 920 18 18 18
1,800 / 1,680 1,816 60 450 1,100 18 18 18
2,000 / 1,880 2,016 60 450 1,215 20 20 20
2,200 / 2,080 2216 60 450 1,340 22 22 22
2,500 / 2,380 2,516 60 450 1,530 25 25 25
2,800 / 2,640 2,816 80 450 2,270 28 28 28
3,000 / 2,840 3,016 80 450 2,435 30 30 30
